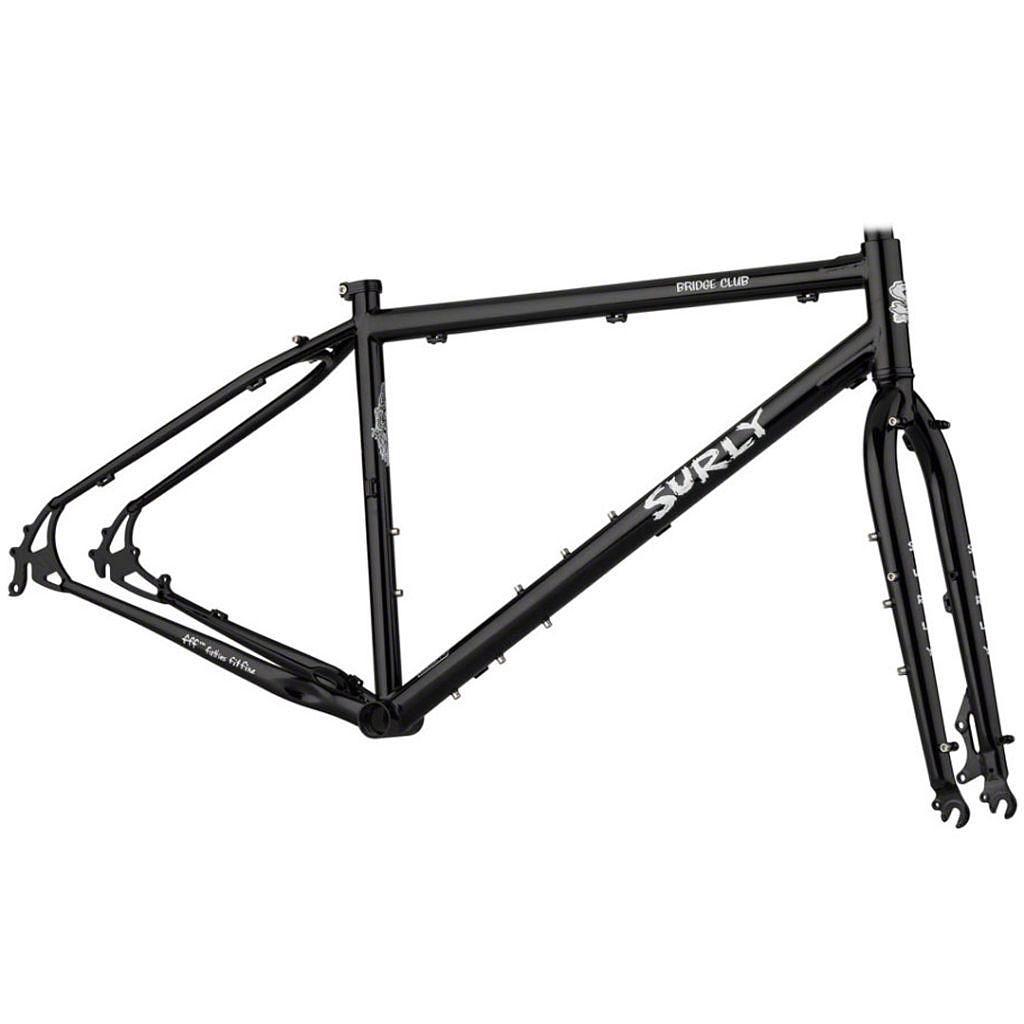

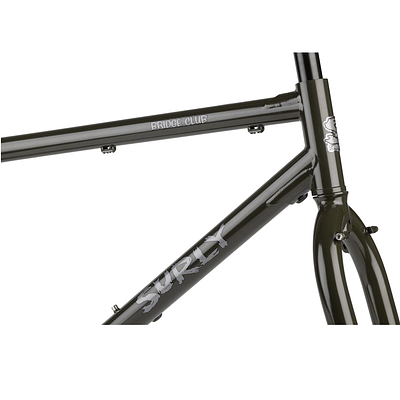

Surly Bridge Club Frameset (Black)

• Bridge Club is for those multi-surface outings — planned or unplanned.
• We've all run out the clock on a dirt tour and had to add in some paved shortcuts.
• Conversely, when you’re feeling a little zesty on your next road tour, Bridge Club is ready for reroutes through the woods.

Ultra-focused on simplicity, it only has the barnacles that matter most to the discerning bike tourist Run racks and panniers, framebags, or all of the above Disc brake-specific, single position vertical rear dropout makes it less intimidating than other bikes in the category Clearance for 700 x 47mm tires (with or without fenders), 27.5 x 2.8” tires (27.5 x 2.6” with fenders), and 26 x 3” tires (26 x 2.8” with fenders)

• Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
• Rear
• Dropout Configuration:
• Vertical
• Rear
• Hub Spacing: "Gnot-Boost" 138mm 10 x 135mm or 10 x 141mm
• Front
• Hub Spacing: 10 x 100mm
• Rear Brake: Disc - 51mm I.S. (180mm max rotor)
• Front Brake: Disc - 51mm I.S. (203mm max rotor)
• Head Tube: Ø34mm
• Steerer Tube: Ø28.6mm (1-1/8")
• Crown Race: Ø30mm (1-1/8") Stock Headset Upper (S.H.I.S.): EC34/28.6 Stock Headset Lower (S.H.I.S.): EC34/30
• Seat Collar: Ø30mm Seatpost: Ø27.2mm Front Derailleur (Clamp): High direct mount top-pull (Ø28.6mm)                26mm offset adapter (not included) for 135mm rear hub spacing                29mm offset adapter (not included) for 141mm rear hub spacing Max Chainring:1x (Mtn): 34T                                                                                                            2x (Mtn): 26/40T                                                                                                        3x (Mtn): 22/36/44T                                                                                                  1x (Boost): 40T                                                                                                          2x (Boost): 32/42T Bottom Bracket:73mm threaded (1.37" x 24TPI)
• Tire
• Clearance Frame: 26 x 3.0" (26 x 2.8" with fenders)                                                                   27.5 x 2.8" (27.5 x 2.6" with fenders)                                                                         700c x 47 with or without fenders Tire Clearance Fork : 26 x 3.0" (26 x 2.8" with fenders)                                                                      27.5 x 2.8" (27.5 x 2.6" with fenders)                                                                        700c x 47 with or without fenders
• Rigid
• Fork Spec: 420 x 43mm Bottle Mounts Frame: 2 Three-Pack (XS)                                                                                              1 Standard + 2 Three-Pack (S - XL)
• Bottle
• Mounts Fork: 2 Three-
• Pack
• Rack
• Mounts Frame: Yes (upper and lower threaded)
• Rack
• Mounts Fork: Yes (upper, lower, and mid-blade threaded)
• Fender
• Mounts Frame:
• Yes
• Fender
• Mounts Fork: Yes

• Country of Origin: Taiwan
• Imported By: Happy Earth Enterprises LLP , 3/8 Ground Floor , Opp. MG Infant School , Bilekahalli , Bengaluru - 560076 , India.
• Net Quantity: 1N
• Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041.
• Ph: (080)47183232,
• Email: support@bumsonthesaddle.com
• Commodity: Framesets
